HLQY-2300/2500 Multi blade Bridge Block Cutter Machine is a classic and practical bridge saws for cutting block into slabs, thin or thick. which adopts Siemense PLC control system, Hiwin linear guide with oil bath. Up to 18 pieces of thin saw blades can be mounted. It's popular in China and abroard for its high efficiency, good stability and long life service.

TECHNICAL DATA | ||||
Model | HLQY-1600 | HLQY-2300 | HLQY-3000 | |
Max. blade diameter | mm | Φ1600 | Φ2300 | Φ3000 |
Cross beam type | A / B | A / B | ||
Cross beam length | mm | 6000 | 7600 / 8300 | 8300 / 9300 |
Cutting length | mm | 3500 | 3500 | 3500 |
Cutting wideth | mm | 2000 | 2000 | 2000 |
Lifting stroke | mm | 800 | 1350 | 1350 |
Power of main motor | kw | 55 (4P) | 55 (4P) | 55 (6P) |
Power of pump motor | kw | 4 | 4 | 4 |
Power of stroke motor | kw | 2.2 | 2.2 | 2.2 |
Power of vertical motor | kw | 1.1 | 1.1 | 1.1 |
Gross power | kw | 62.3 | 62.3 | 62.3 |
Gross weight | 10000 | 13000/14000 | 14000/15500 | |
Dimensiona(L x W x H) | 650x500x400 | 780x500x450 | 780x500x450 |


Main Features
1) Siemens smart PLC control system makeshigh automation performance and easy.
2) Adopts 4 pillars for spindle sliding, which ensure the structure of the machine is steady and the lifting is stable.
3) Two-slider frame structure driven synchronized by screw with high stiffness and stability.
4) Sliding system of X and Y axes on linear guides and racks both in oil bath lubrication grants smooth and high production.
Detailed Images

Machine Parts

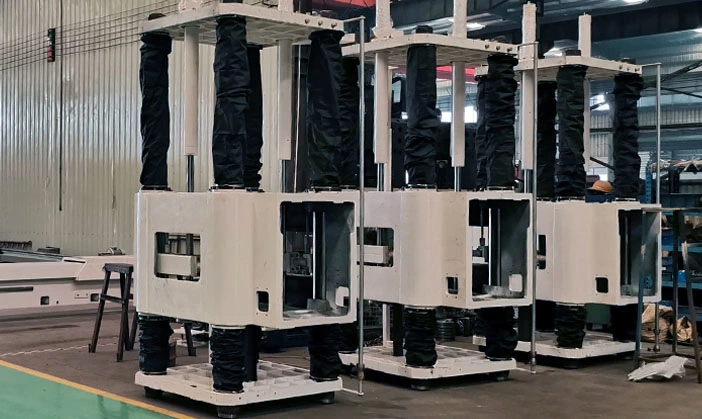

Name: 4 big strong pilllars
Use: sliding guide for spindle
Covered by fabric for preventing pollution.
Linear Guide
Brand: Hiwin
Original: Taiwan, China
Famous products, top quality use on crossbeam and carling for good performance.
Original: Taiwan, China
Famous products, top quality use on crossbeam and carling for good performance.


Machine Parts
Name: Circle Blade
Original: China

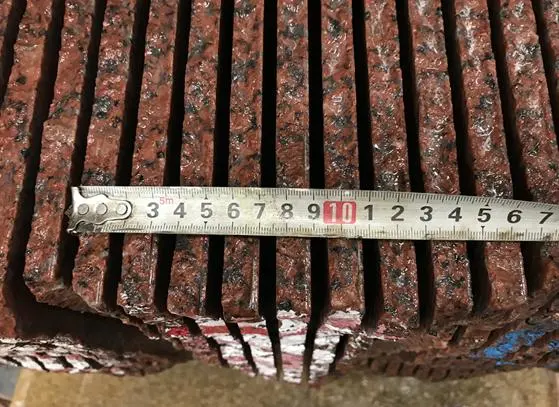

Up to 18 pieces of blade can be hanged for efficient production of thin slabs.
Original: China
Up to 18 pieces of blade can be hanged for efficient production of thin slabs.
Electronic Control System
Brand: Siemens
Original: Germany

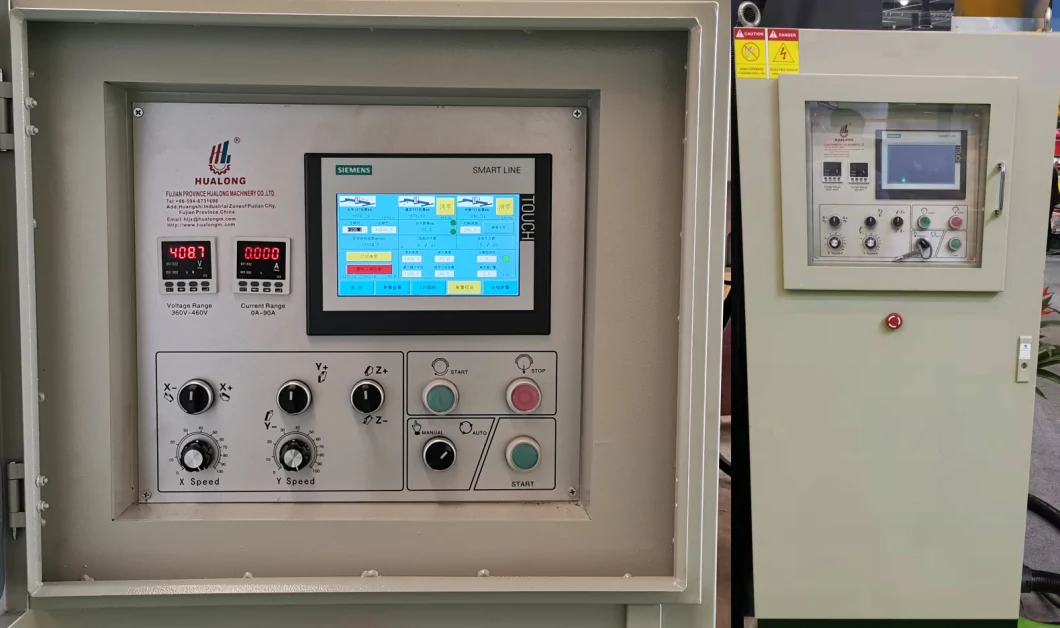

Famous product, equipped for good stability and high automation performance.
Original: Germany
Famous product, equipped for good stability and high automation performance.
